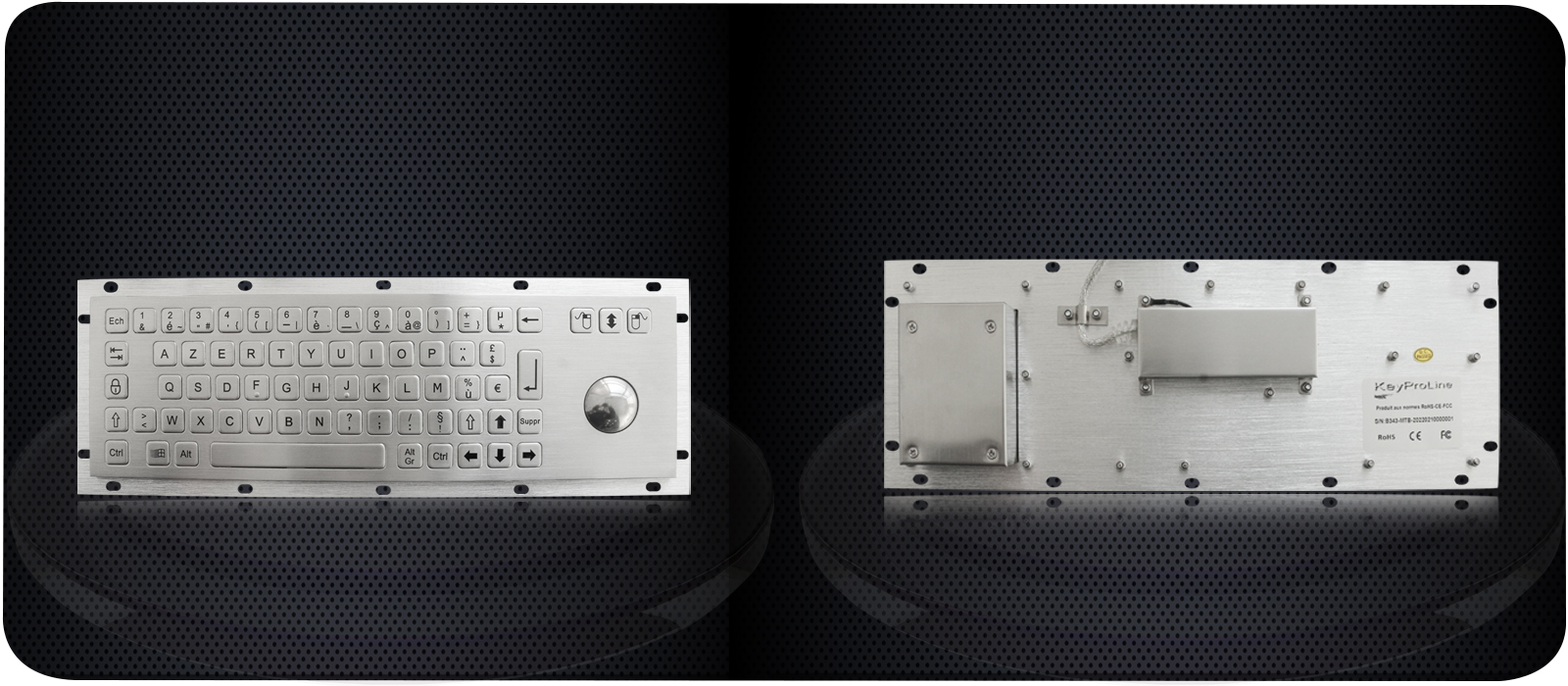

PS2 USB Compact 69 Keys Kiosk Keyboard With Trackball For Rear Panel Mounting

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-B343-MTB

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Dimensions : 343.0mm x 105.0mm (front panel)

Key Travel : 0.45mm±0.05mm

Supply Voltage : +5V DC ± 5%

Interface : PS2, USB available

mouse buttons : 3

Keys : 69 keys (including 3 mouse buttons)

Trackball : MTB, OTB, LTB optional

Name : stainless steel keyboard

Contact Now

Compact size with 69 key kiosk keyboard with trackball for rear panel mount

Descriptions: 69 keys IP65 static compact format vandal proof stainless steel industrial keyboard with IP65 static 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, rear panel mounting solution.

DIMENSIONS: 343.0mm x 105.0mm (front panel)

PS2 USB Compact 69 Keys Kiosk Keyboard With Trackball For Rear Panel Mounting

MECHANICAL DATA
Actuator/keys 69 keys (including 3 mouse buttons)
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
Key travel 0.45±0.05mm
Actuation Force 2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5N±0.4N for key 14.0mm x 28.0mm (pressure point)
Front Plate 1.5mm thickness super quality brushed stainless steel
Back Plate 3.0mm thickness brushed & oxidized aluminium
Switch life more than 1 million of operations
Tracker ball 38.0mm mechanical trackball module
G.W. 1.80KGs
ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Our Factory:

PS2 USB Compact 69 Keys Kiosk Keyboard With Trackball For Rear Panel Mounting

PS2 USB Compact 69 Keys Kiosk Keyboard With Trackball For Rear Panel Mounting
