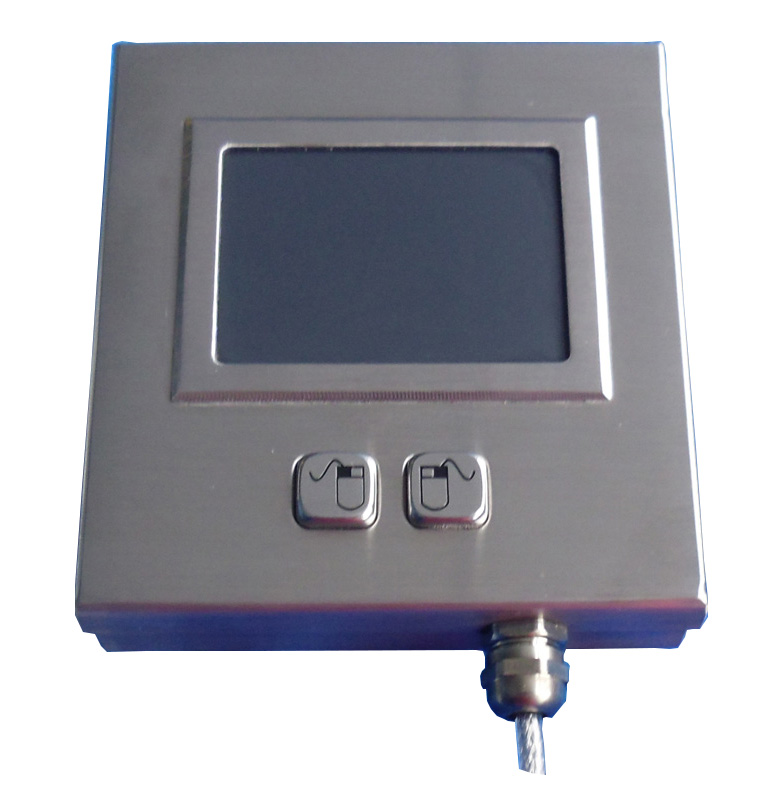

Weather proof metal industrial movable touchpad with 2 mouse buttons
Mian features:
1. IP65 dynamic sealed and ruggedized tough touchpad
2. with scroll function (optional) for fast and accurate cursor position
3. With stainless steel housing protects the electronicss module
4. Raised buttons for mouse keys
5. Stainless steel desk top touchpad
6. Plug and play USB or PS/2 interface
7. Raised buttons for mouse keys
8. Stand alone desk top version
9. Ergonomic quality ruggedized touchpad
Application:
A: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
B: MILITARY: Army, Navy, Air force, Marine and Boating etc
C: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.
D: INDUSTRIAL: Industrial automation, Banks/Kiosks, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses.
| ITEM | SPECIFICATION |
| Mechanical | Front Plate | Quality brushed stainless steel |
| Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer |
| Validated touch width | 46.50mm (max) |
| Validated touch length | 62.50mm (max) |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover |
| Touchpad lifespan | > 10 Mio times |
| Dimensions | Touchpad: 65.0mm x 49.0mm; Dimensions: 107.0mm x 120.0mm x 20.0mm (L x W x H) |
| Interface | PS2 and USB both available |
| Electrical | Power supply | 5V DC+ 10%, |
| Work current | 4.0 mA (normal) |
| X/Y position sensing resolution | 1000 points/inch (40 points/mm) |
| X/Y position reporting: | Relative |
| Tracking speed: | Maximum 1,016 m/sec |
| Protection level: | IP65 (front panel) |
| Static Release: | 15 KV (front panel) |
| EMC Standard: | EN55022(B) |
| Environmental | Operating temperature: | -20°C to +60°C |
| Storage temperature: | - 40°C to + 70°C |
| Operating RH: | 10%-95% |
| Atmospheric pressure: | 60-106Kpa |
| Reliability | MTBF | >20000h |
| MTTR | < 30min |
| Touchpad Lifespan | >10 million actuations |
| OS | OS is under All windows, Linux, Unix, Mac OS9 / OSX |
| Packing Details | Each unit to a suitable inner box, suitable brown inner boxes to a standard export carton. |
