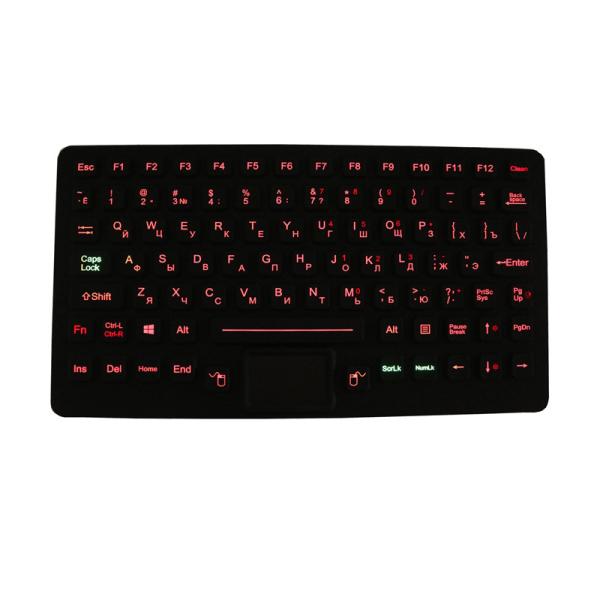

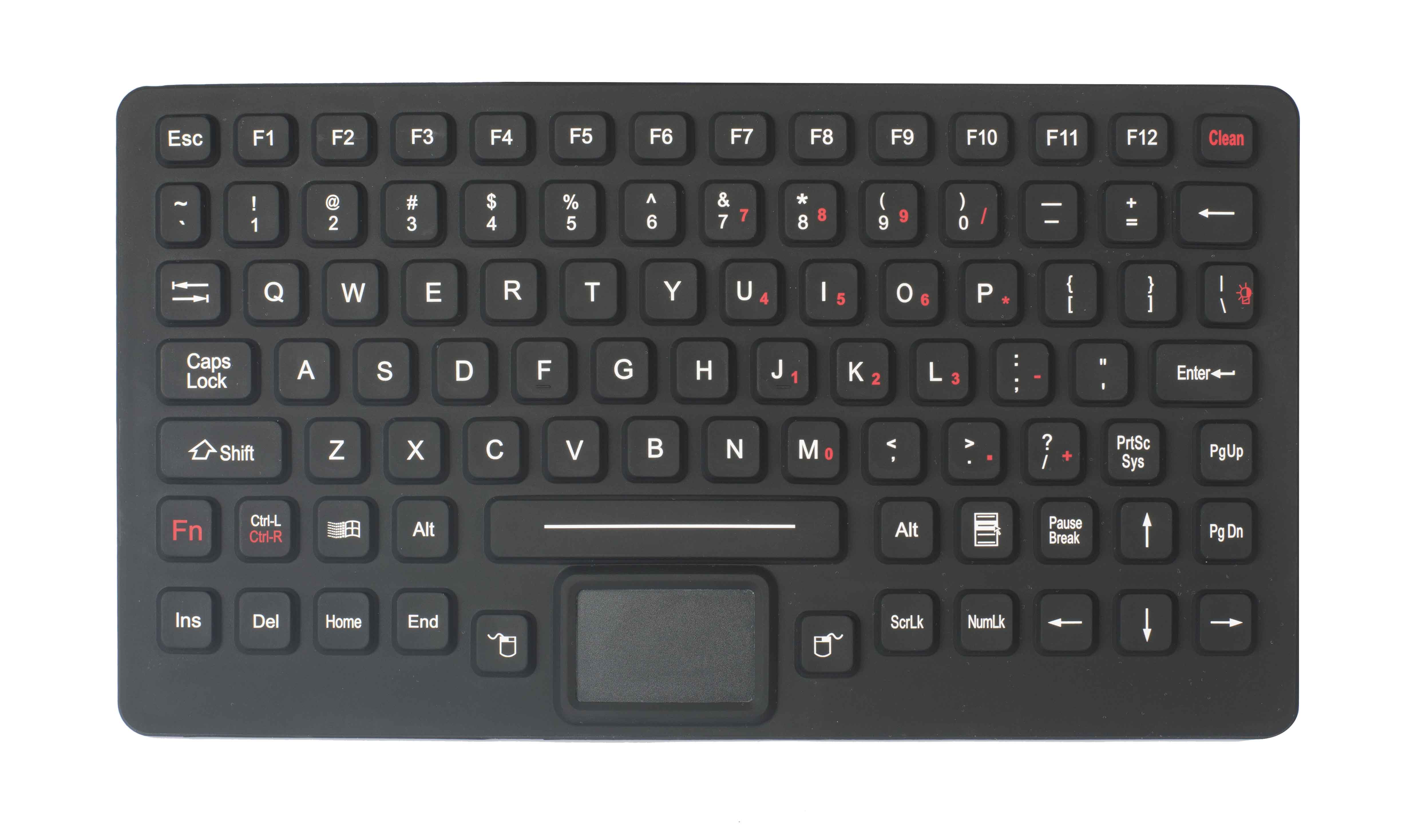

Small Silicone Panel Mount Keyboard

Small Silicone Red Backlit Industrial Keyboards Sealed Touchpad

Model NO:K-TEK-M276TP-FN-BL-ML-OEM

DESCRIPTION: 89 keys IP65 dynamic sealed and ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities with sealed and ruggedized tough touchpad for fast and accurate cursor position, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean key to lock/disable the keyboard for easy cleaning without needing to take the keyboard from PC, top panel mounted with optional stainless steel back plate sealed with top ruggedized industrial silicone cover & industrial PCB for ruggedized structure and easy mounting and sealing, stainless steel housing protects the electronics controller. Adjustable industrial backlight included, military level.

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-40oC to +80oC
Storage temperature: :-50oC to +90oC
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY

RoHS , CE, FCC, ESD
Protection Level: IP65, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min

Application Photo:

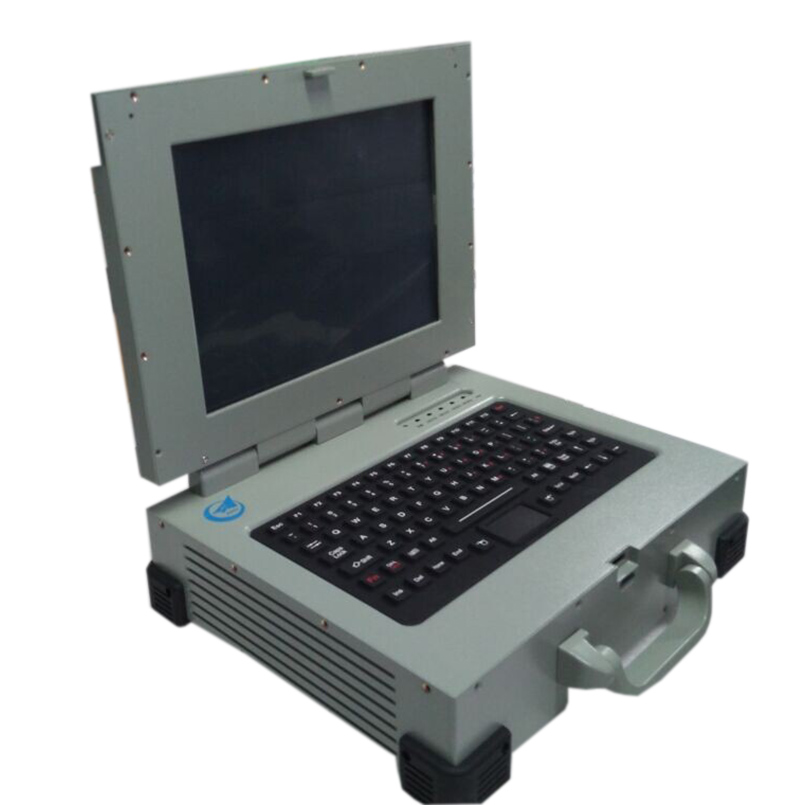

panel mounted keyboard

usb keyboard with trackball

Small Silicone Panel Mount Keyboard Images
