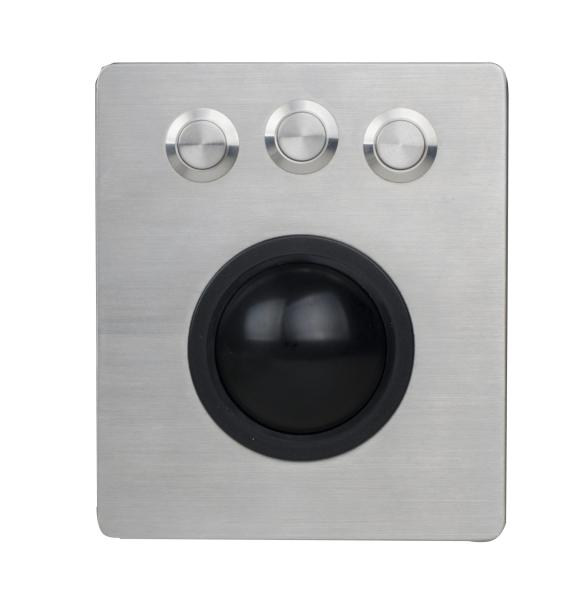

IP65 50 Mm Mechanical Resin Military Trackball With USB Interface
Quick Details:
1. IP65 dynamic vandal proof stainless steel industrial mechanical trackball
2. 50.0mm mechanical trackball
3. IP65 dynamic mechanical trackball module with 400 DPI
4. 100.mm x 116.mm (front panel)
Descriptions:
1. IP65 Vandal proof Stainless Steel Trackball with 50mm black hardened resin ball
2. IP65 rated 50mm mechanical trackball module with adjustable resolutions functionalities from low to high to meet different application requirements
3. Sealed stainless steel 3 mouse buttons, with front panel mounting solutions.
4. Military level.
Main Features:
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
3. Available 50mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
4. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
5. Retaining one-pixel positioning accuracy when the ball is moved slowly.
6. Can be mounted horizontally, and vertically or any directions.
7. No metal bearings inside, operation is very smooth, and easy without any noise.
Applications:
Applications:
This industrial trackball is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Mechanical DATA:
| Key | 3 keys, quality brushed stainless steel |
| Key top style | Protuberant Rectangular Keys |
| Front Plate | Quality brushed stainless steel |
| Key Travel | 0.45mm |
| Ball diameter | 50.0mm(19mm, 25mm, 36mm 40mm also available) |
| Key switch lifespan | more than 10 Mio actuations |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover |
| Actuation Force | 1.0N to 3.0N |
| Mounting Rack | Aluminum alloy |
| Dimension | Dimensions with 38mm track ball, Front plate (L x Wx H): 100 x 116 x 40 mm |
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB |
| Protection level | IP65 (front panel), NEMA4X,IK10 |

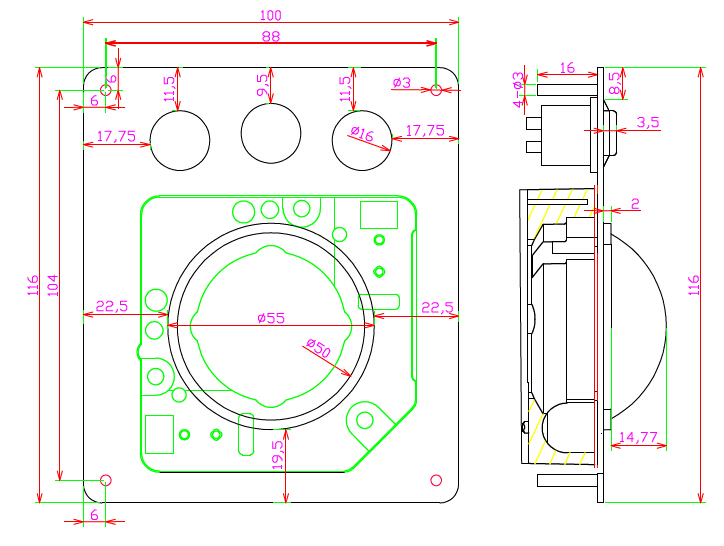

Mechanical Drawing:

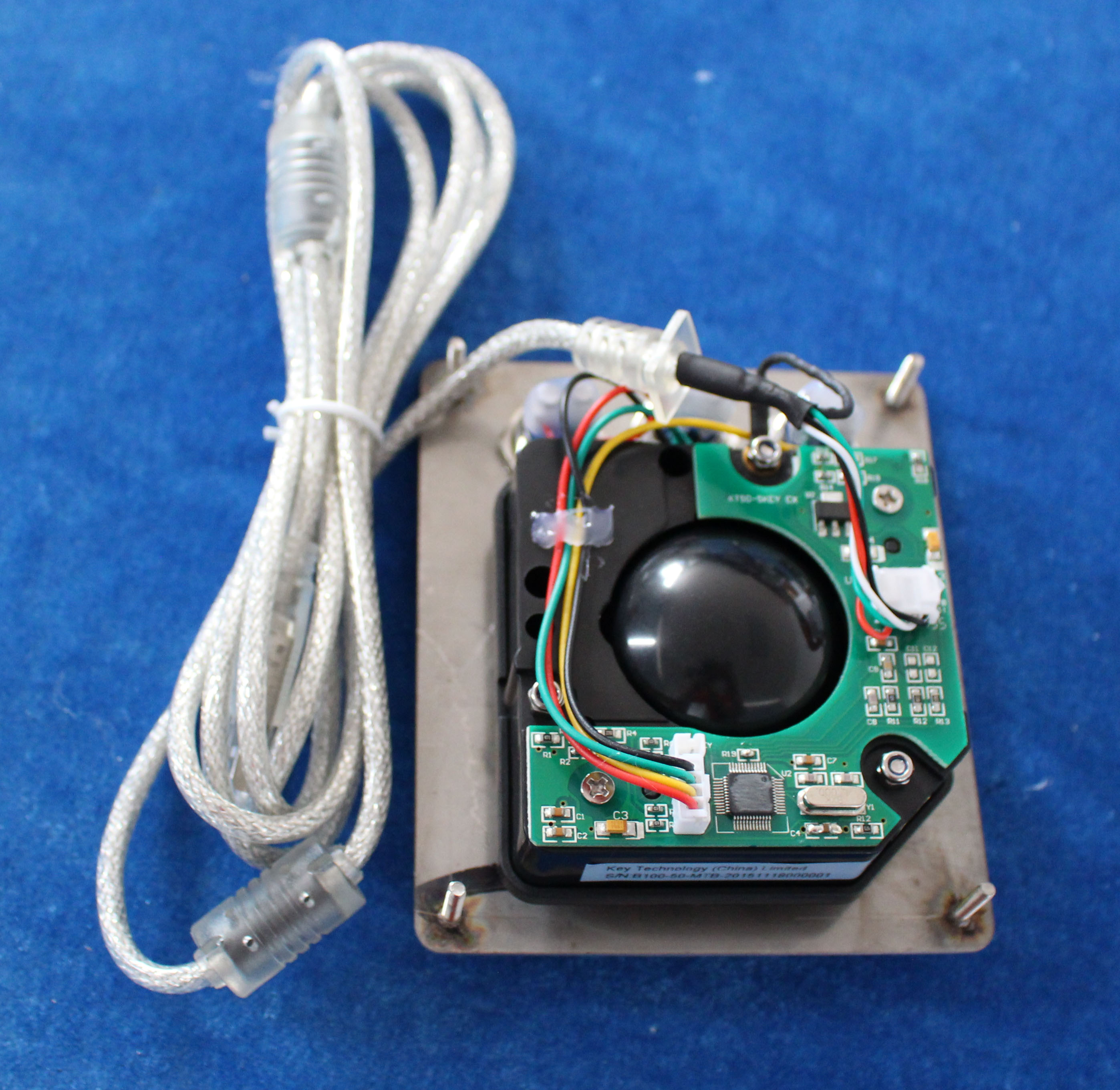

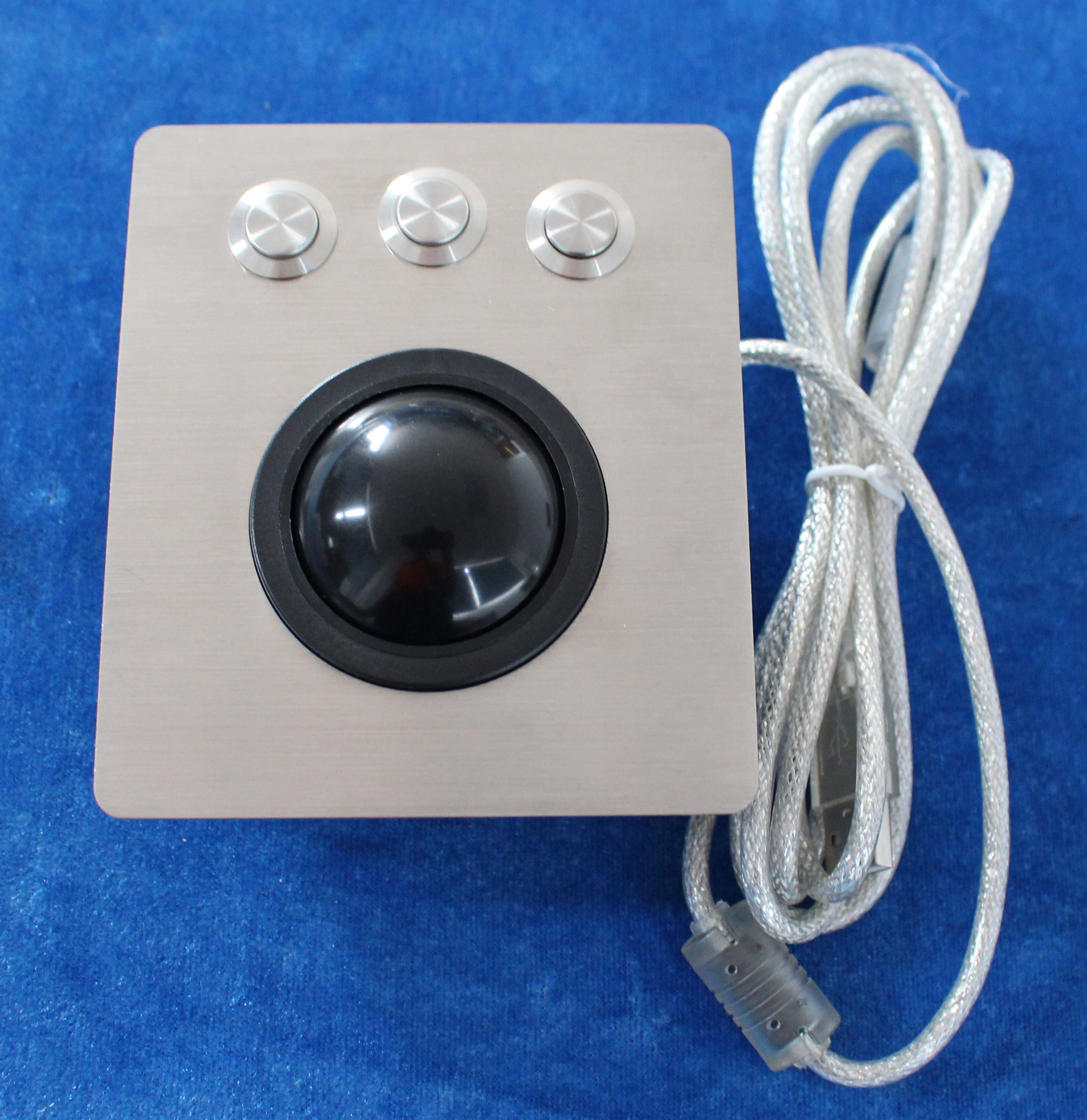

ACTUAL PICTURES:
ENVIRONMENTAL ADAPTABILITY:
- Operating temperature:-40ºC~+ 80º C
- Storage temperature:- 45ºC~+ 85ºC
- Operating RH:30～90%
- Atmospheric pressure: 60～106Kpa
