Ip65 Metal Rugged Keyboard With Touchpad And Full Functionalities

IP65 metal ruggedized keyboard with full functionalities and touchpad

DESCRIPTION:

97 Keys Compact Format IP65 dynamic Vandal Proof Stainless steel industrial keyboard with full keyboard functionalities, with sealed & ruggedized touchpad with scroll function (optional) for fast and accurate cursor position, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES), industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, movable stand alone desk top version, or mountable desktop with mounting holes on the bottoms for fixing.

DIMENSIONS: 420.0mm x 145.0mm x 20.0mm (L x W x H)

Special Features:

1. 100 Keys Compact Format IP65 Explosion Proof Stainless steel industrial keyboard

2. Against corrosion metal terminal keyboard with touchpad mouse combo

3. Vandal proof desktop stainless steel industrial keyboard for industrial computer

4. movable stand alone desk top version, or mountable desktop with mounting holes on the bottoms for fixing.

5. touchpad includd

6. CE, FCC, ROHS, IP65, ESD

7. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,functionality, longevity and high protection level.

8. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

9. Optional Trackball Modules Optional:
IP65 static mechanical trackball module with 400 DPI,
IP68 dynamic washable optical trackball module with 800 DPI,
IP68 dynamic washable laser trackball module with 1200 DPI

10. any customized layout is available

11. Explosionproof for the mine application

APPLICATION:

• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE:

• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to IP65 protection from top panel.
• An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Complete electronic modules including controller in close consultation with our customers are available.
• PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
• The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.

MECHANICAL DATA:

ENVIRONMENTAL ADAPTABILITY

· Operating temperature:-20^oC to +60^oC

Storage temperature: -30^oC to +70^oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40^oC: 21 days, IEC 60512-6

Dry heat test at + 85^oC: 10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP65(front panel)

Vandal resistant IK09

Key Lifespan >10 million actuations

MTBF >50000H

MTTR <30min

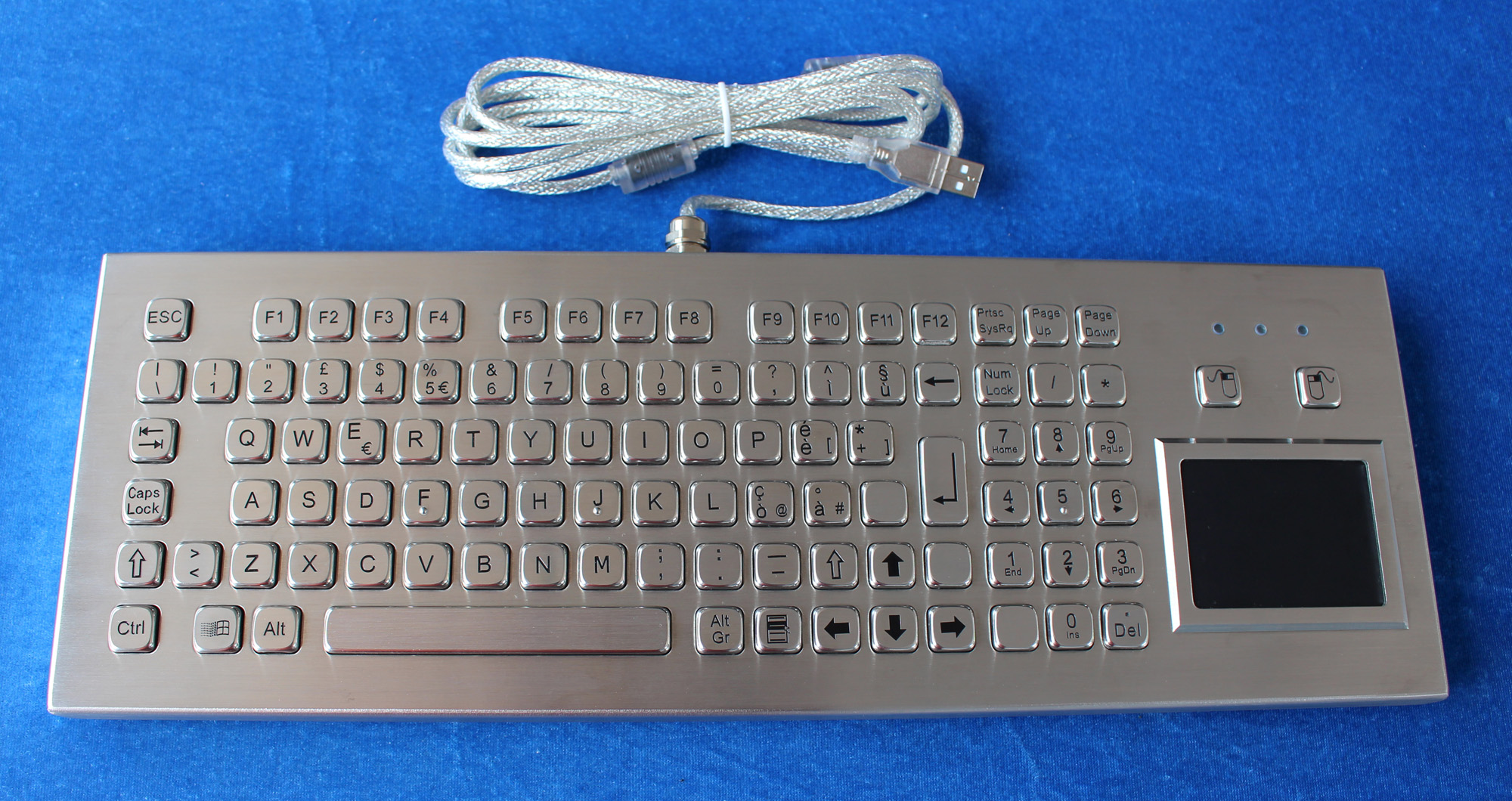

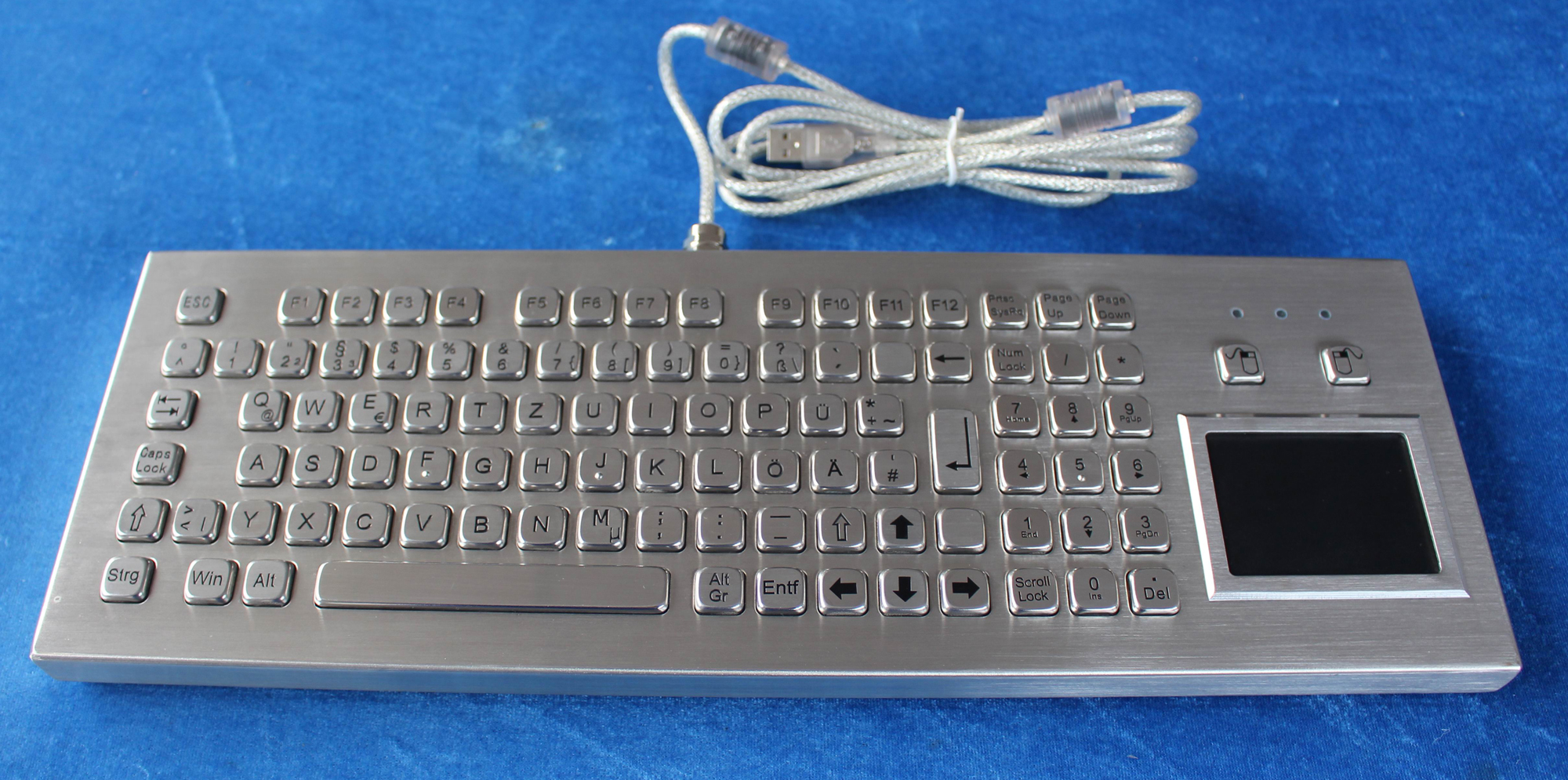

Front View:

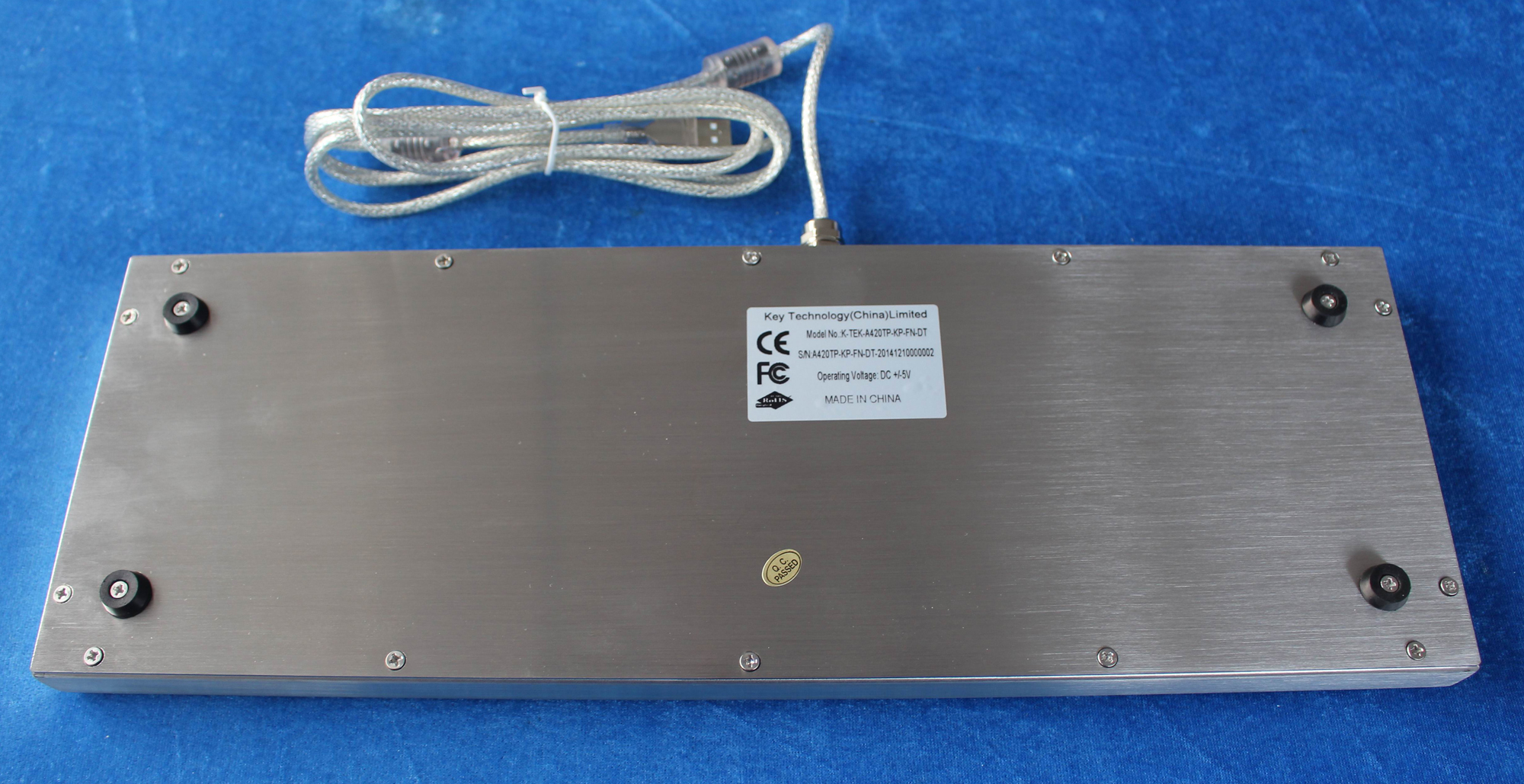

Back View:

Our Factory:

Our Certification:
