IP67 silicone industrial keyboard used for ruggedized computer/laptop/industrial area
DESCRIPTION: 83 keys IP67 dynamic sealed & ruggedized silicone rubber industrial keyboard with industrial PCB included, 12 function keys on top line for easy operation, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment,
FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC,panel mounted version, adjustable industrial backlight included, Industrial Level. industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise,
Main Features:
1. 83 keys IP67 dynamic sealed & ruggedized industrial silicone rubber Hygienic keyboard
with industrial PCB included
2. 12 function keys
3. with durable coating & anti-microbial keyboard surface withstand to most chemicals and
liquids under harsh environment.
4. Clean key for easy cleaning via lock/disable whole keyboard without needing to take
keyboard from PC
5. Panel mounted version, adjustable industrial backlight optional. Military level optional
6. With firm tactile key feel, key travel 1.5mm key travel.
7. industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise.
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
9. PS/2, USB connection cables that plug directly into computer like keyboard operations.
10. Enclosure: industrial silicone, stand alone back plate optional
11. This industrial keyboard working temperature is -20-+60 degree
APPLICATIONS:
- This keyboard provides full-size versatility in a rugged, compact design with the embedded convenience of an integrated numeric keypad. For working in low-light areas, it is with LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
- MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
- MILITARY: Army, Navy, Air force
- INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
- MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
- OTHER INDUSTRIES
MECHANICAL DATA:
| Key | 83 keys |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key. |
| Switch life | more than 10 million of operations. |
| Cable Length | 2.0m |
| G.W. | 0.80KGs |
| Dimensions | 270.0mm x 113.0mm (L x W) |
ELECTRICAL DATA:
| Supply Voltage | +5V DC +/-5% |
| Current Rating | appr. 30mA (non-backlight), 140mA (with backlight on) |
| Current Rating | appr. 30mA |
| EMC Standard | It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Lifespan | >5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB. |
| Interface | PS2, USB available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |

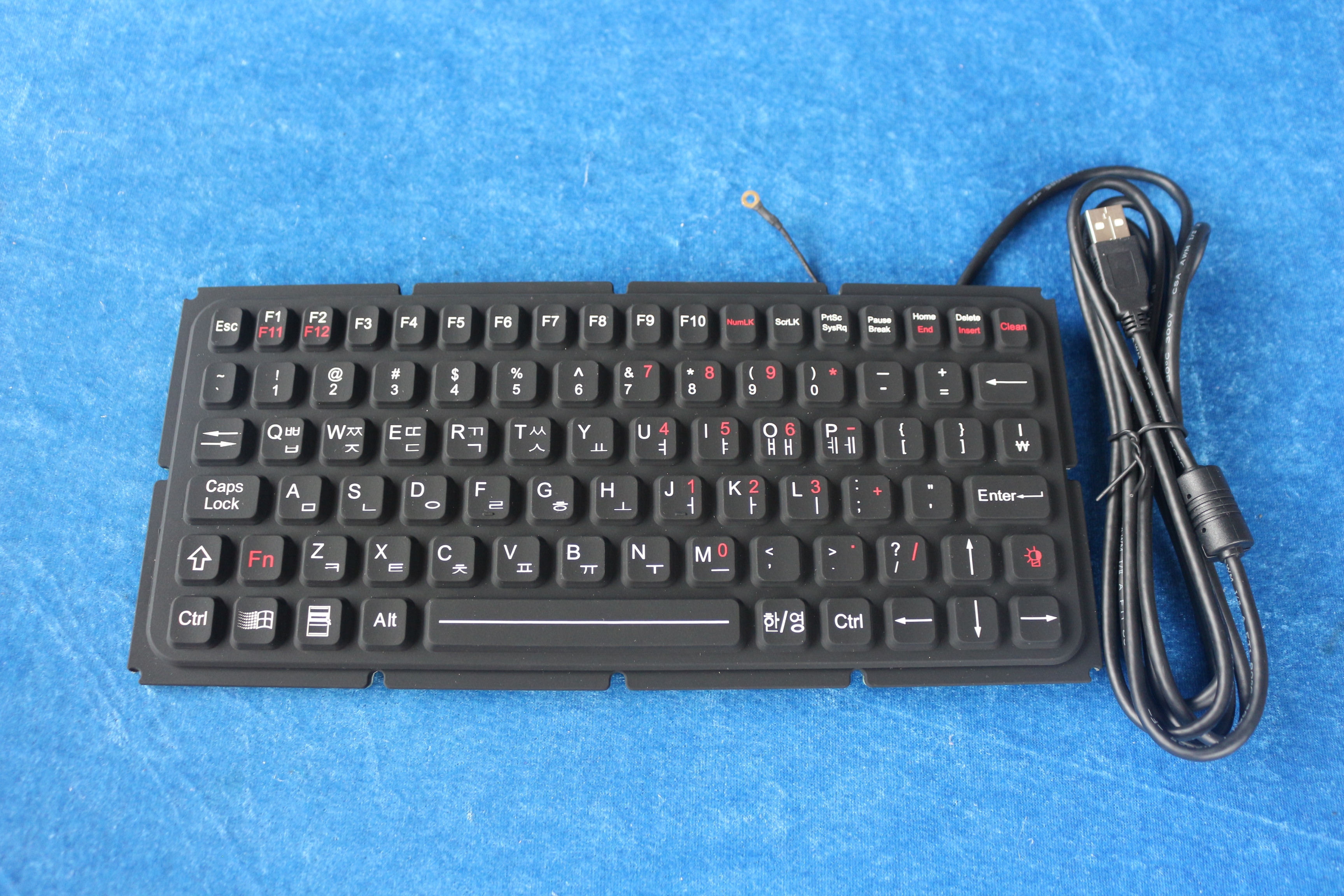

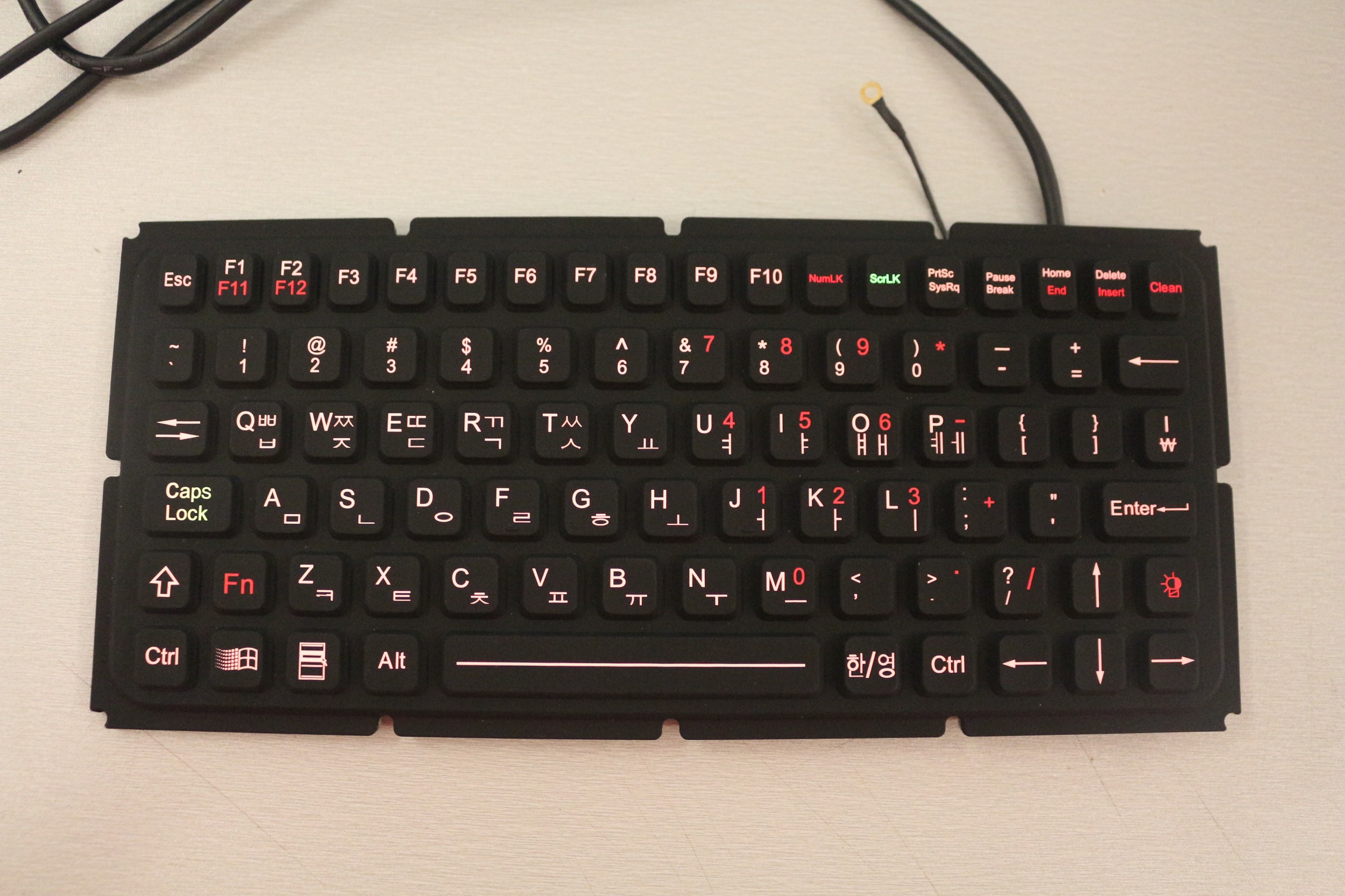

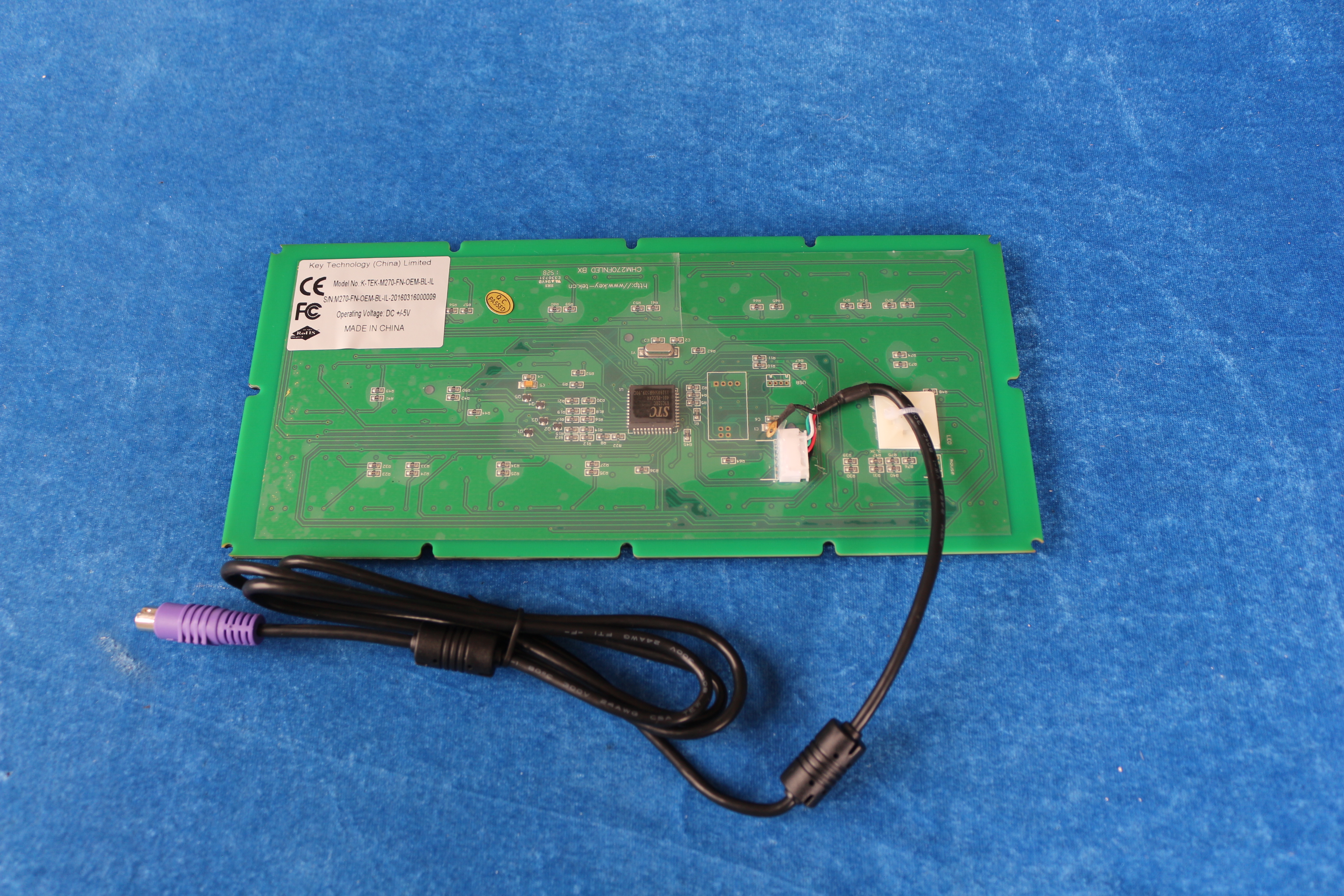

Actual Photos:
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC(industrial level)
Storage temperature: :-30oC to +70oC (industrial level)
Humidity: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V
RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP67, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
