Industrial Metal Keyboard With Touchpad
INDUSTRIAL KEYBOARD WITH TOUCHPAD DESCRIPTION:
1. 85 Keys Compact Format IP65 dynamic washable Vandal Proof Stainless Steel industrial Keyboard
2. IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position,
3. Industrial metal PCB with gold-on-gold key switch technology with short stroke 0.45mm for stable and accurate input without any noise.
4. One complete silicone rubber along the underneath of stainless steel top plate for easy mounting & sealing tightly with cabinet,
5. 2 mouse buttons designed for right & left clicking, function keys F1,F2..F10, F11, F12 are on the top panel for easy operation.
6. Stainless steel top plate with threaded bolts for top panel mounting solution.
7. Adjustable industrial backlight optional. (Blue, Red, White colors etc. optional).
8. The keyboard is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
| STAINLESS STEEL KEYBOARD MECHANICAL DATA |
| Actuator/keys | 85 keys (including 2 mouse buttons) |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 0.45±0.05mm |
| Actuation Force | 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 2.0mm thickness super quality brushed stainless steel |
| Switch life | more than 1 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes |
| Mutual capacitance sensing |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 2.00KGs |
| ELECTRICAL DATA |
| Supply Voltage | +5V DC ± 5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY |
| RoHS Compliant, CE and FCC, ESD |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

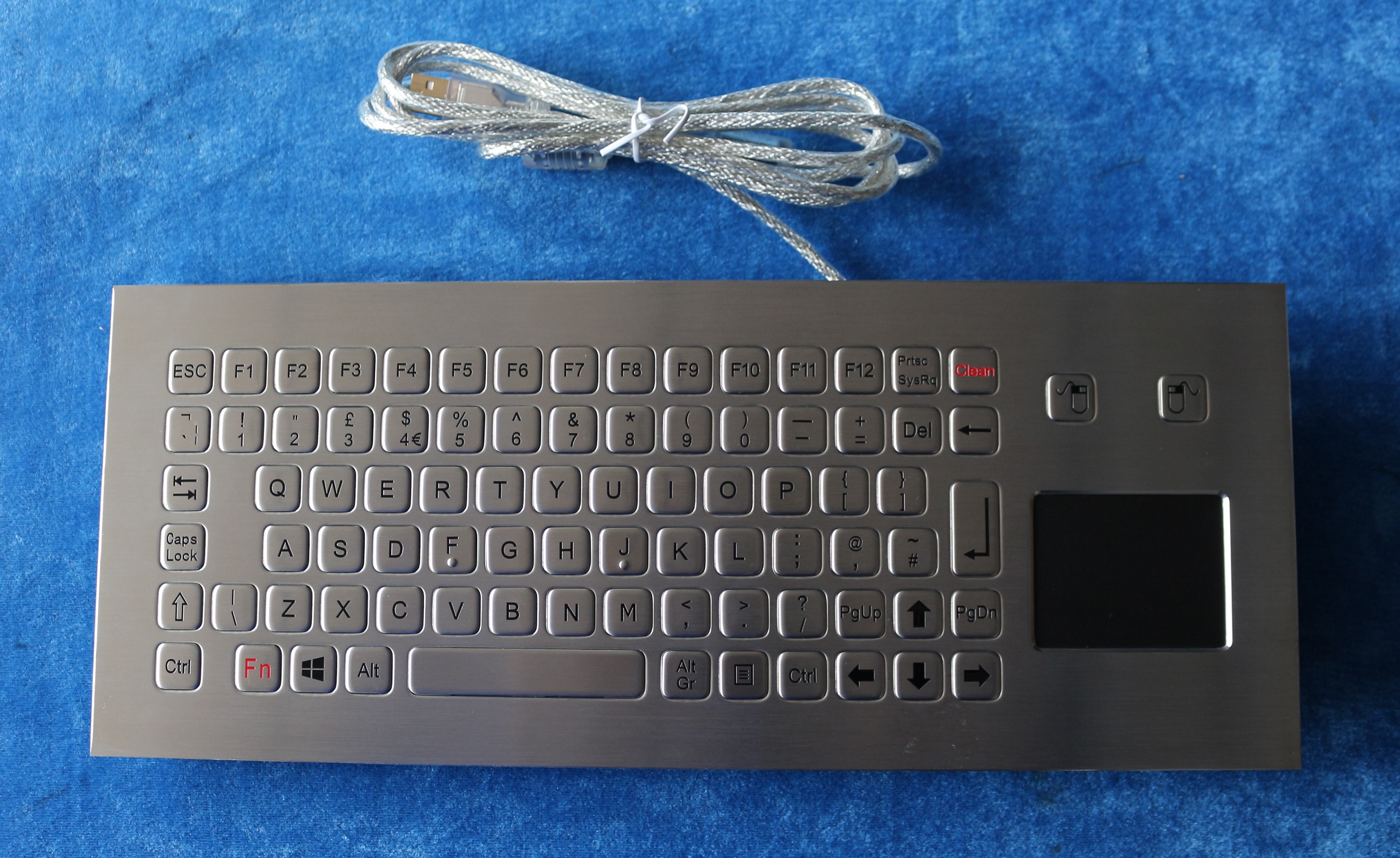

Industrial Metal Keyboard Front View
Industrial Keyboard Back View
