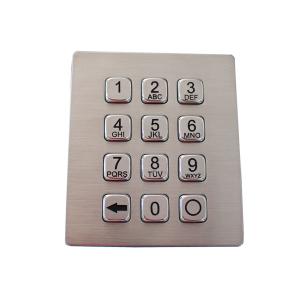

12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Dot Matrix Interface

Product Categories

Ruggedized Keyboard [67]
Panel Mount Keyboard [58]
Industrial Keyboard With Trackball [77]
Industrial Keyboard With Touchpad [70]
Silicone Industrial Keyboard [100]
Industrial Membrane Keyboard [71]
Backlit USB Keyboard [38]
Black Metal Keyboard [26]
Metal Keypad [140]
Trackball Pointing Device [104]
Industrial Touchpad [48]
Medical Keyboard [26]
Stainless Steel Keyboard [110]
Vandal Resistant Phone [6]
Vehicle Keyboard [6]
Industrial Mouse [15]
Military Keyboard [69]

Key Technology ( China ) Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Dot Matrix Interface

Name: 12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Dot Matrix Interface
Brand: IKB-MKB
Price: 1 USD

12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Dot Matrix Interface Manufactures

Brand Name : IKB-MKB

Model Number : K-TEK-A88KP-AC-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : 304 stainless steel

Colour : Brushed stainless steel

Interface : Dot Matrix Interface

Key number : 12 keys

Dimension : 88.0mm x 102.0mm (top panel)

Layout : Customizable

Contact Now

12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Keypads

DESCRIPTION:

12 keys IP67 dynamic washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix circuit with socket on the back panel of PCB forconnecting electronics controller, with carbon-on-gold key switch technology for fast and accurate data input, top panel mounting with sealing gasket for easy tightly mounting to enclosure or panel. Backlight optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 88.0mm x 102.0mm (top panel)

We provide customized service ,more details please click"Contact Now ",we are

online and will reply you ASAP !

our working time :8:30 am -18:00 pm, from monday to friday (BeiJing Time )

MECHANICAL DATA	ELECTRICAL DATA
Front Plate: 1.5mm thickness super quality brushed stainless steel Back plate: 1.0mm thickness super quality stainless steel Actuator/Key: 12 keys, super quality SUS304 brushed stainless steel Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available. Key size: 14.0mm x 14.0mm Switching material: Carbon-on-Gold. Actuation Force: 1.2N+/-0.1N (pressure point) Key Travel: 2.0mm. Key life: 5 million of operation Dimensions: 88.0mm x 102.0mm. G.W. 0.40KGs.	Supply Voltage: +5V DC +/-5% Current Rating: appr. 30mA EMC Standard: EN 55032:2015 EN 55035:2017 Lifespan > 5 years Switch Contact Material: Carbon-on-Gold key switch technology PCB. OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)












	ENVIRONMENTAL ADAPTABILITY
	Operating temperature:-20^oC to +60^oC Storage temperature: -30^oC to +70^oC Operating RH: 30-90% Atmospheric pressure: 60-106Kpa. Saline mist: 96 hours, IEC 60512-6 Damp heat test at + 40^oC: 21 days, IEC 60512-6 Dry heat test at + 85^oC: 10 days, IEC 60512-6









	RELIABILITY
	RoHS Compliant, CE and FCC, ESD Protection Level: IP67(front panel) Vandal resistant IK08 Key Lifespan > 5 million actuations MTBF > 20000H MTTR < 30min

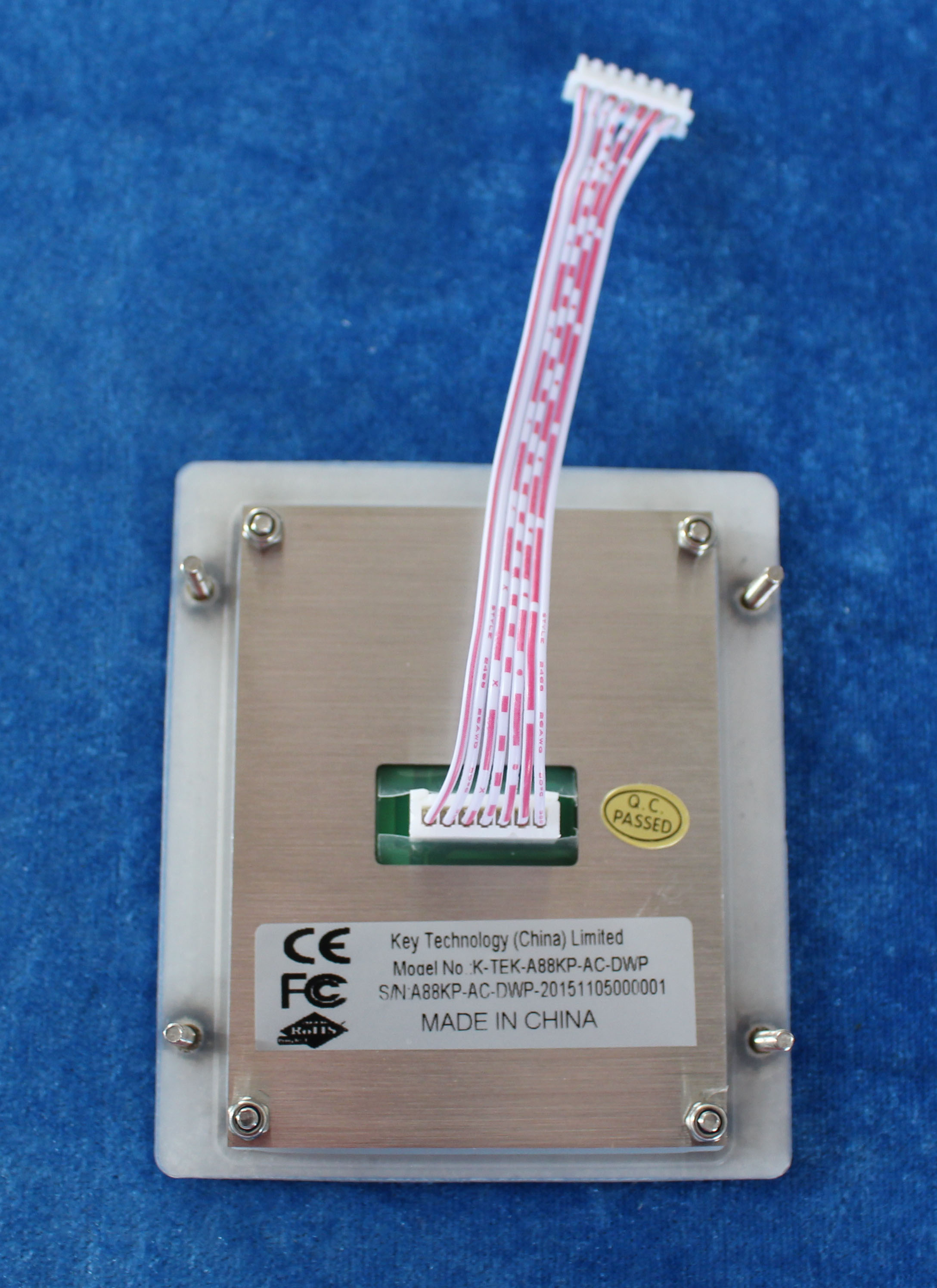

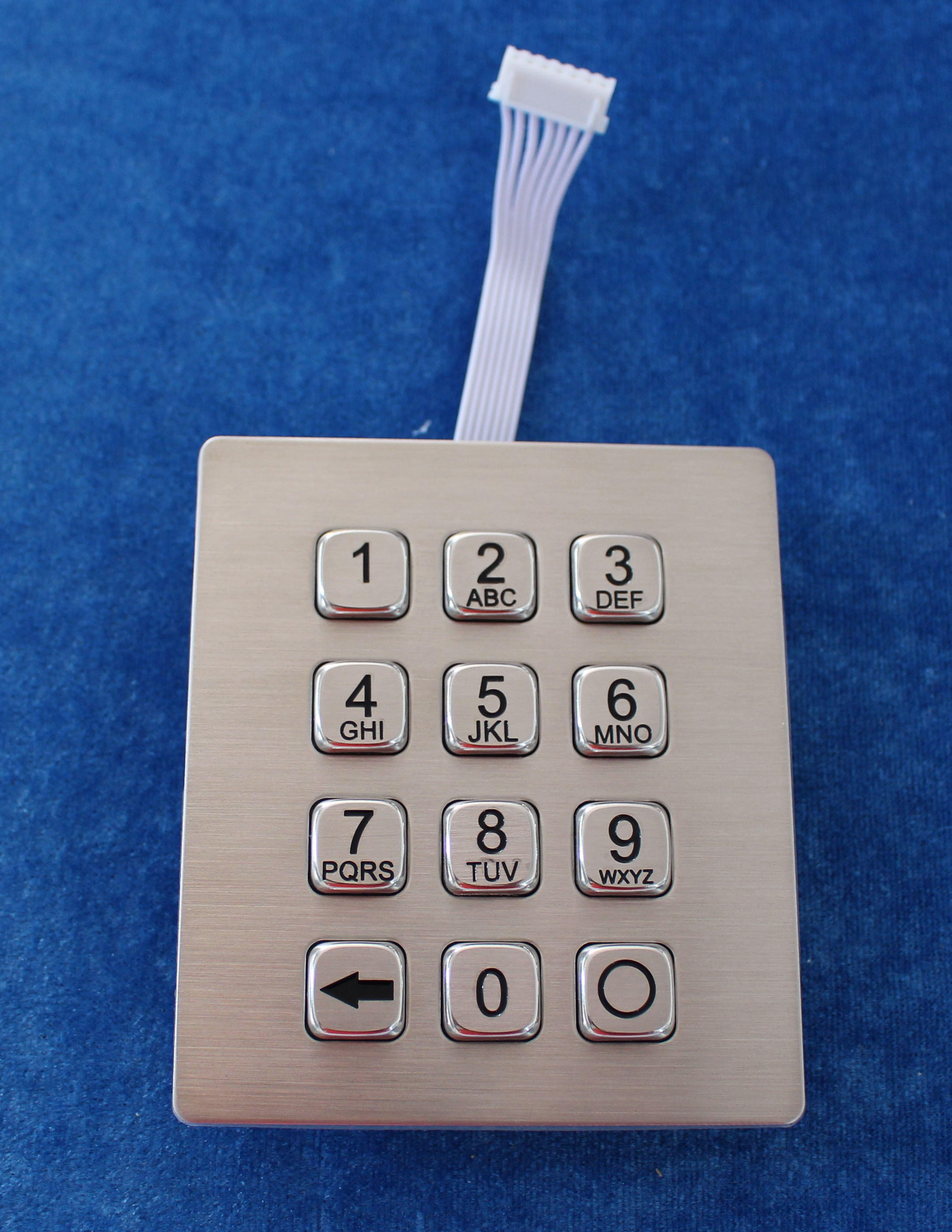

Actual Photo:

12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Dot Matrix Interface

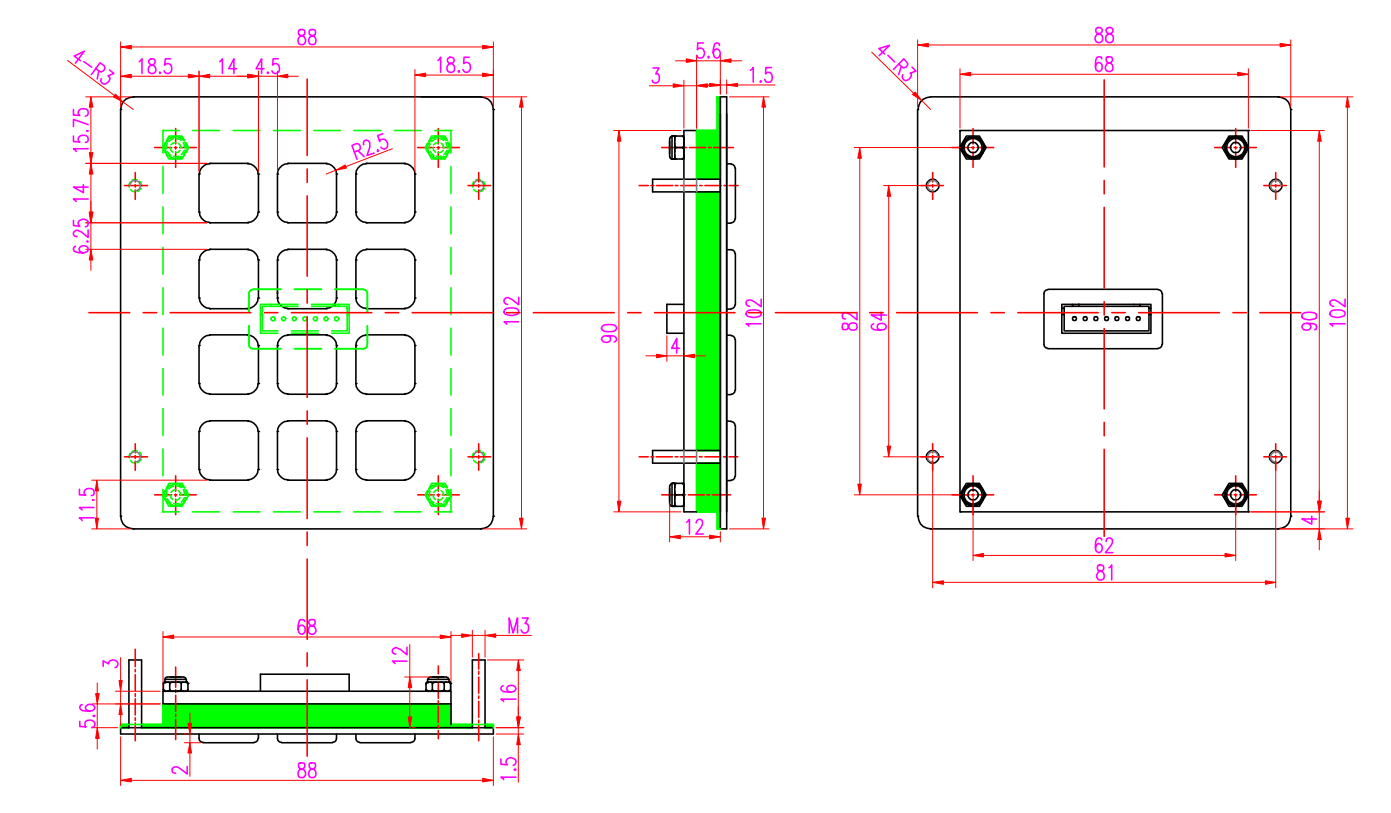

Mechanical Drawing:

12 Keys Metal Numeric Keypad 4x3 Door Entry Programmable Dot Matrix Interface
