IP67 Dynamic Waterproof Black Rubber Industrial Touchpad with 2 Buttons

Name: IP67 Dynamic Waterproof Black Rubber Industrial Touchpad with 2 Buttons
Brand: IKB-MKB
Price: 1 USD

Brand Name : IKB-MKB

Model Number : K-TEK-M90TP-IL

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Key : 2 keys

Key top style : Protuberant rectangular keys with tactile feeling

Switch life : more than 5 million of operations

Cable Length : 2.0m

G.W. : 0.40KGs

Dimensions : 90.0mm x 90.0mm (front panel)

Material : Rubber

Color : Black

Contact Now

IP67 Dynamic Waterproof Black Rubber Industrial Touchpad with 2 Buttons

DESCRIPTION: IP67 dynamic Sealed and Ruggedized Rubber Touchpad for fast and accurate cursor position, with 2 raised mouse buttons under touchpad, with mounting holes along the rear panel mounting plate for rear panel mounting.

APPLICATIONS:

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES

MAIN FEATURES:

IP67 Dynamic Sealed and Ruggedized Rubber Touchpad for fast and accurate cursor position
Special dual-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.5mm.
Enclosure: industrial silicone
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.

IP67 Dynamic Waterproof Black Rubber Industrial Touchpad with 2 Buttons

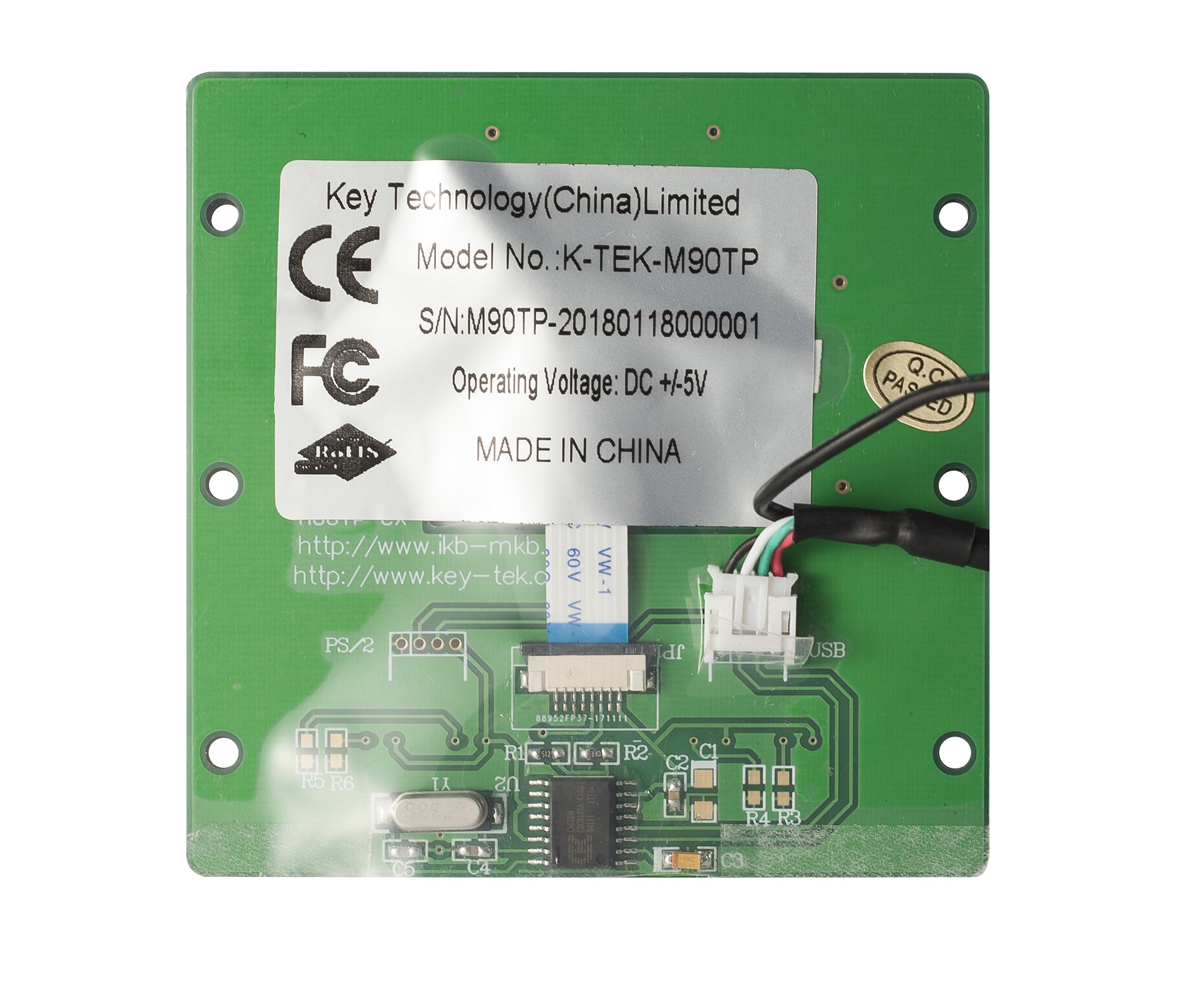

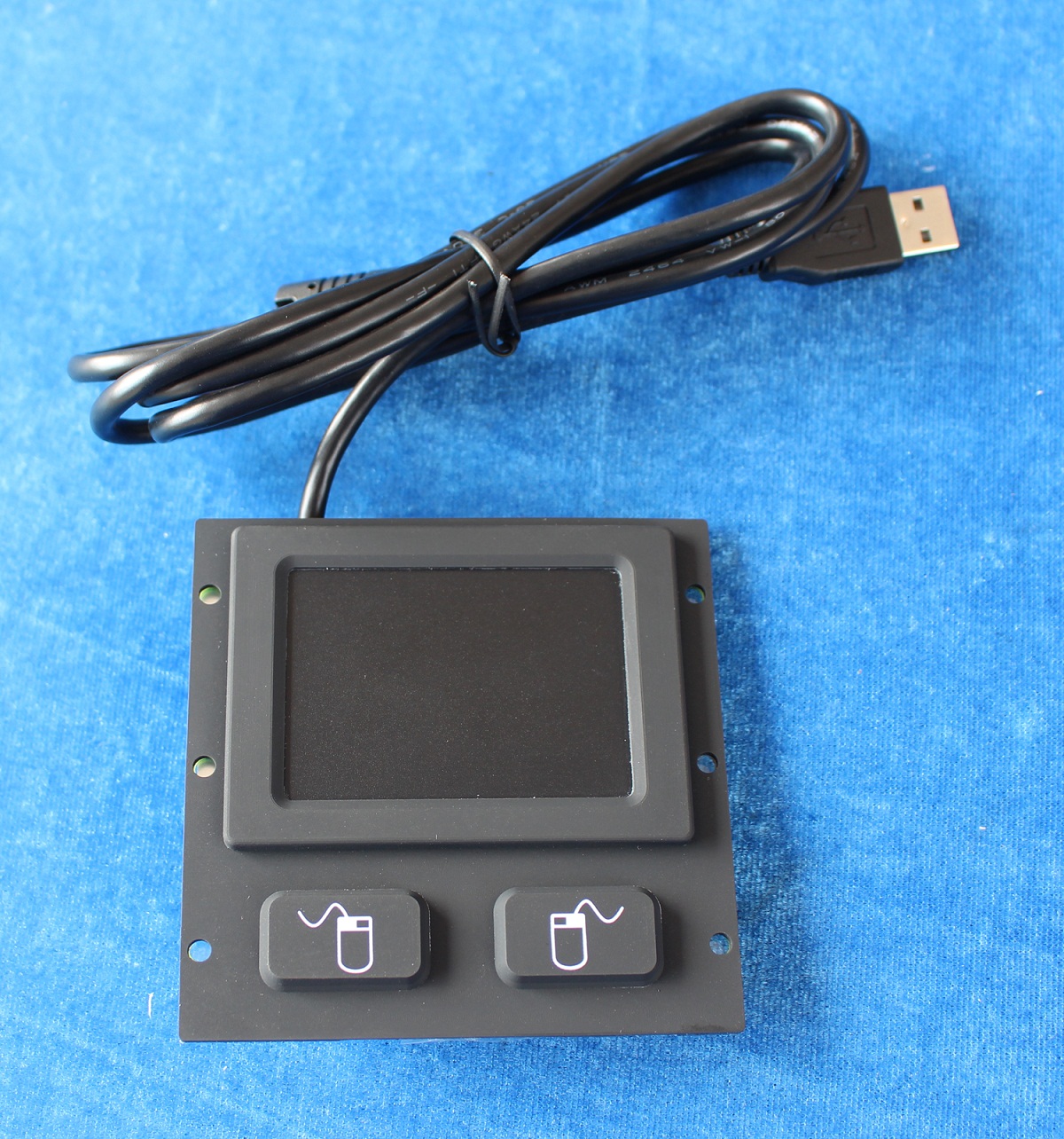

ACTUAL PHOTOS:

IP67 Dynamic Waterproof Black Rubber Industrial Touchpad with 2 Buttons

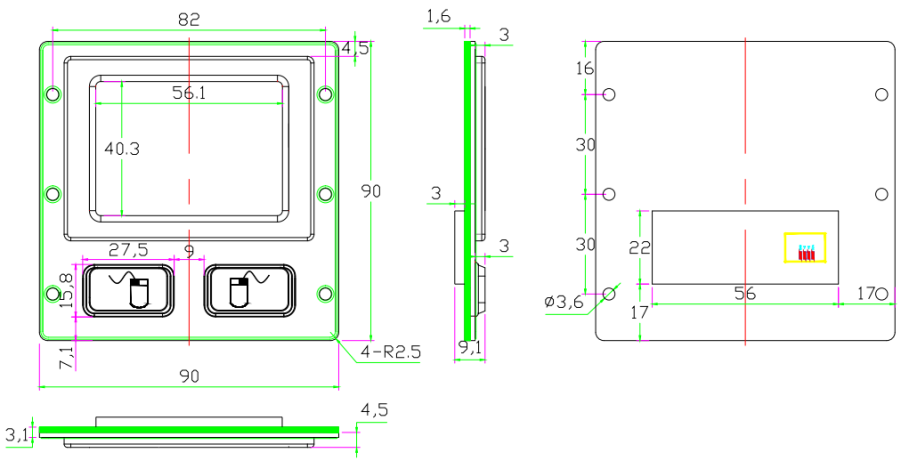

MECHANICAL DATA:

Key	2 keys
Key top style	Protuberant rectangular keys with tactile feeling
Switch life	more than 5 million of operations
Cable Length	2.0m
G.W.	0.40KGs
Dimensions	90.0mm x 90.0mm (front panel)

ELECTRICAL DATA:

Supply Voltage	+5V DC +/-5%
Current Rating	50mA (non-backlight) , 120mA (with backlight on)
Power	0.25W (non-backlight), 0.60W (with backlight on)
EMC Standard	It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI	EN 55022: 2010
EMS	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20℃ to +60℃
Storage temperature: -30℃ to +70℃
Humidity: 100%
Atmospheric pressure: 60-106Kpa

RELIABILITY

RoHS, CE and FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
