IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type

Name: IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type
Brand: IKB-MKB
Price: 1 USD

IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type Manufactures

Brand Name : IKB-MKB

Model Number : K-TEK-B107TP-DT-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Metal stainless steel

Colour : Brushed stainless steel or Black

Application : Kiosk, medical, railway, navy

Mouse : Industrial touchpad

Keys : 2 keys

Interfaces : USB port, PS2 port

Contact Now

Ip68 Dynamic Sealed Waterproof Stand Alone Desktop Stainless Steel Touchpad

MODEL NO.: K-TEK-B107TP-DT-DWP

DESCRIPTION:

IP68 dynamic sealed and stainless steel ruggedized tough touchpad with IP67

dynamic sealed stainless steel mouse buttons, with movable stand alone desktop version or mountable stand alone desk top versions with stainless steel housing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 107.0mm x 110.0mm x 31.3mm (L x W x H)

TECHNICAL SPECIFICATION

ITEM		SPECIFICATION
Mechanical	Front Plate	Quality brushed stainless steel
	Touchpad thickness	1.2 mm PCB thickness inclusive of mylar layer
	Validated touch width	45.0mm (max)
	Validated touch length	60.0mm (max)
	Mounting Rack	Movable stand alone desktop version
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Touchpad lifespan	> 5 years
	Dimensions	Touchpad: 60.0mm x 45.0mm; Front Mounting Panel: 107.0mm x 120.0mm (front panel)
Interface	PS2 and USB both available
Electrical	Power supply		5 VDC ± 0.25V
	Work current		17 mA (normal)
	X/Y position sensing resolution:		1000 points/inch (40 points/mm)
	X/Y position reporting:		Relative
	Tracking speed:		Maximum 1,016 m/sec
	Protection level:		IP68 dynamic (front panel)
	Static Release:		15 KV (front panel)
	EMC Standard:		EN 55032:2015, EN 55035:2017
Environmental	Operating temperature:		-20°C to +60°C
	Storage temperature:		- 30°C to + 70°C
	Operating RH:		10%-95%
	Atmospheric pressure:		60-106Kpa
Reliability	MTBF		>20000H
	MTTR		< 30min
	Key Switch Lifespan		>1 million
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

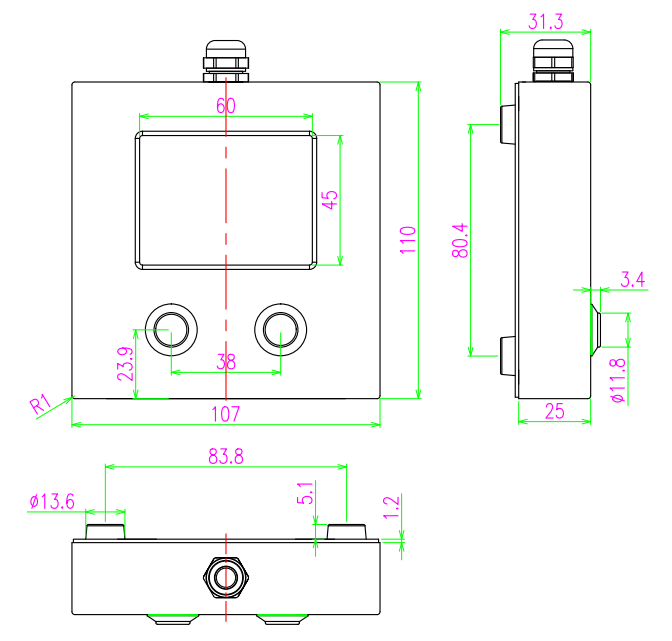

Mechanical Drawing:
IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type

IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type

IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type
